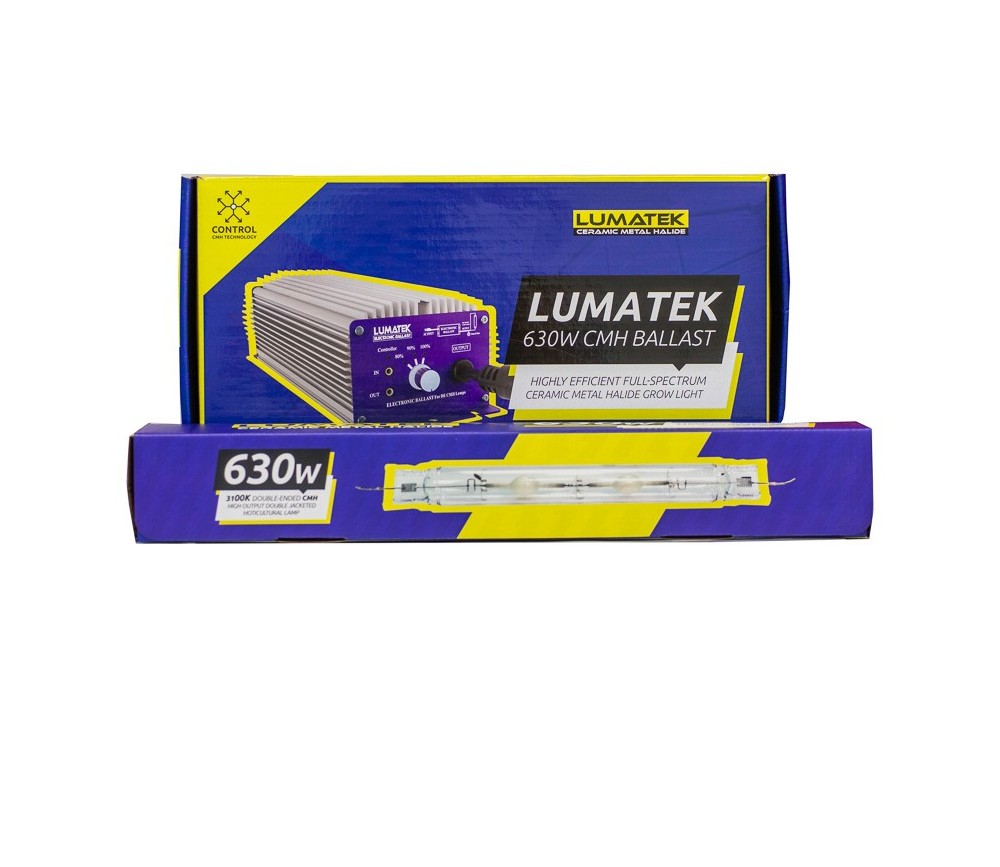

CMH/LEC 630W DE BALLAST AND GROWLIGHT KIT

The Lumatek CMH 630W ballast uses high frequency technology to power and ignite the 630W LEC/CMH double ended (DE) lamp

The CMH/LEC technology produces PAR/PPF levels with low heat and a Sun-like spectrum, which results in higher yield and better quality, with more resin and terpenes. With a 630W LEC/CMH lamp, you’ll get a yield similar to a 1000W HPS.

Features of the Lumatek CMH 630W ballast:

It has 3 power positions: 80%, 90%, and 100%

The control model allows you to incorporate the Lumatek Control Panel, sold separately, and easily monitor and manage the environment of your grow room (dimmed lighting, sunrise / sunset, 1% digital dimming, etc.) for up to 400 ballasts.

• Full circuit protection (short circuit, over temperature, overvoltage, low voltage, end of lamp life, rectification and electromagnetic interference suppression).
• Voltage: 240 V 50 / 60Hz
• Max. input current (A): 3.2A
• Input power: 668 W
• Output power: 630 W
• Power factor: > 0.97
• Efficiency: 95%
• Voltage range: 185 to 275 V
• THD: <10%
• Dimming: 80% - 90% - 100%
• CF: <1.7
• Operating frequency: high frequency
• No audible noise, no flickering
• Ambient temperature for full load operation: 40 ℃
• Enclosure temperature rise (Δt): 30 ℃
• Rated ballast IP: IP20
• Humidity: 90%
• Certified EMI Suppression
• Dimensions: 320 x 114 x 81 mm
• Weight: 3.8 Kg

Features of the Lumatek 3100K LEC CMH 630W DE lamp

• Power 630-690W
• Spectrum: Mixed - 3100K
• Double Ended Socket
• Lifespan of 6-8 crops, after which yield decreases.
• Power supply voltage: 240V 50Hz
• CCT (K): 3100K (Agro)
• Efficacy (lm / W): 123
• PAR (micromoles / sec): 1268
• Bulb: T32.
• Base: K12x30s (double composition)
• Does not include C-14 plug&play cable

La Huerta’s Opinion

To use the kit you’ll need a reflector with a DE Double Ended socket. At La Huerta Grow Shop we have a wide variety of reflectors available to adapt to the kit.

The Lumatek CMH 630W ballast is a cutting-edge adjustable and configurable ballast. To fully utilize its features, you can also purchase the Lumatek digital control panel.

We recommend using protective glasses, like the method seven glasses, to protect your eyes from IR and UV rays

If you cut the original plug in order to make connection, you’ll automatically void the manufacturer's warranty. Hence, it's recommended that you get a cable. We recommend the 3X1,5C-14 cable which is plug&play.
