Uses and Measurements

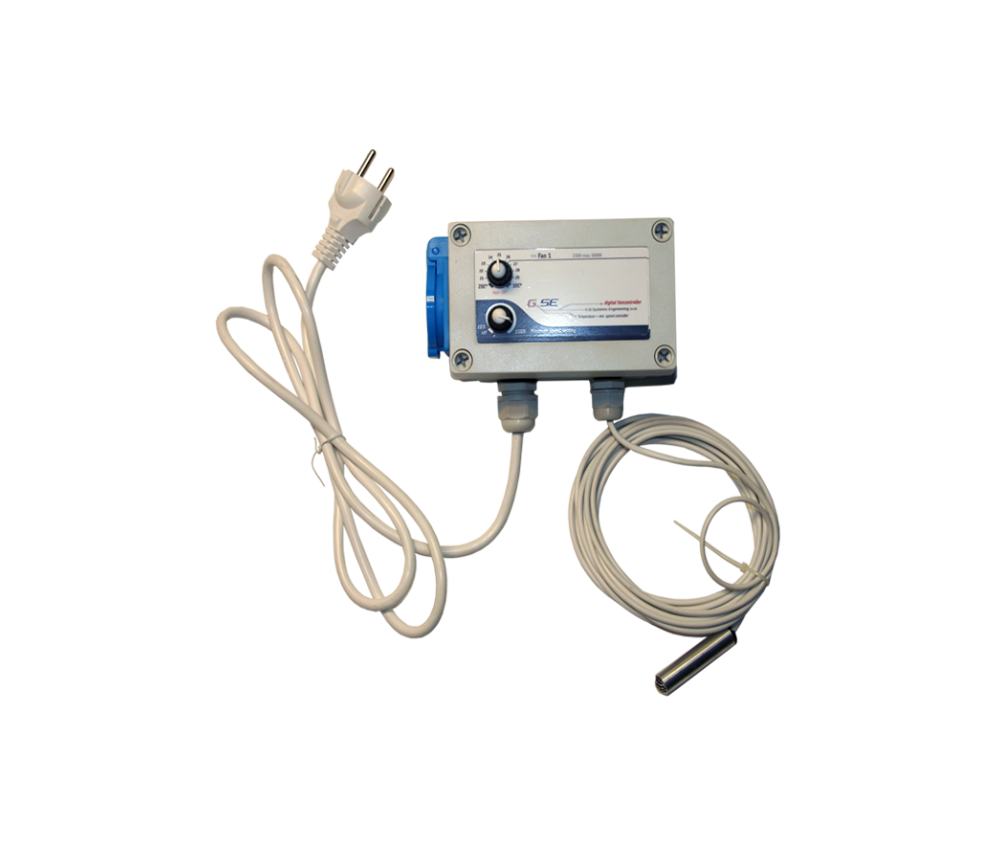

- The minimum speed and temperature regulator is an environmental control device that can maintain a steady flow of air and temperature. Through the use of one or more extractors, it prevents fluctuations below the set speed.
- Easy handling, just two control knobs.
- Ready to use.
- Sealed and water-resistant cover.
- Sensor with a 4m cable, extendable up to 50m.
Instructions:
- Place the air expulsion fan in the socket.
- Install the temperature probe, which comes with a 4-meter long cable, in the place where you want to measure the temperature. Be careful not to place the probe near a heat or light source to avoid incorrect readings. If the cable is too short, it can be extended up to a maximum of 50 meters.
- Be careful when unplugging the power cord. Incorrect startups or short circuits can destroy sensitive parts of the processor.
- Place the ignition cable in a 10A socket. The fan should now operate at 20% to achieve low pressure. Adjust the temperature with the top button. If the temperature exceeds the set temperature by 2º Celsius, the fan will operate at its maximum capacity to correct it.
- The second potentiometer is used to adjust the minimum speed below which the controller will never operate.
Measurements and technical data:
- Housing: WidthxHeightxLength: 130x80x70 mm
- Controller: WidthxHeightxLength: 160x100x90 mm
- Designed for: 2x600W / TRIAC 2x16A
- Voltage: 230V / 50HZ
- Digital Sensor: 5V measures temperature from -55ºC to +125ºC (-67ºF to +257ºF)
- 0.5ºC accuracy from -10ºC to +58ºC
- Protection class: IP54
La Huerta’s Opinion
The minimum speed and temperature regulator is a fantastic temperature control system and optimizer that can result in an improvement in crop yield. It can be recommended to indoor growers of both small and large rooms. More indoor growing solutions right here, at La Huerta Grow Shop.
