Uses and Specifications

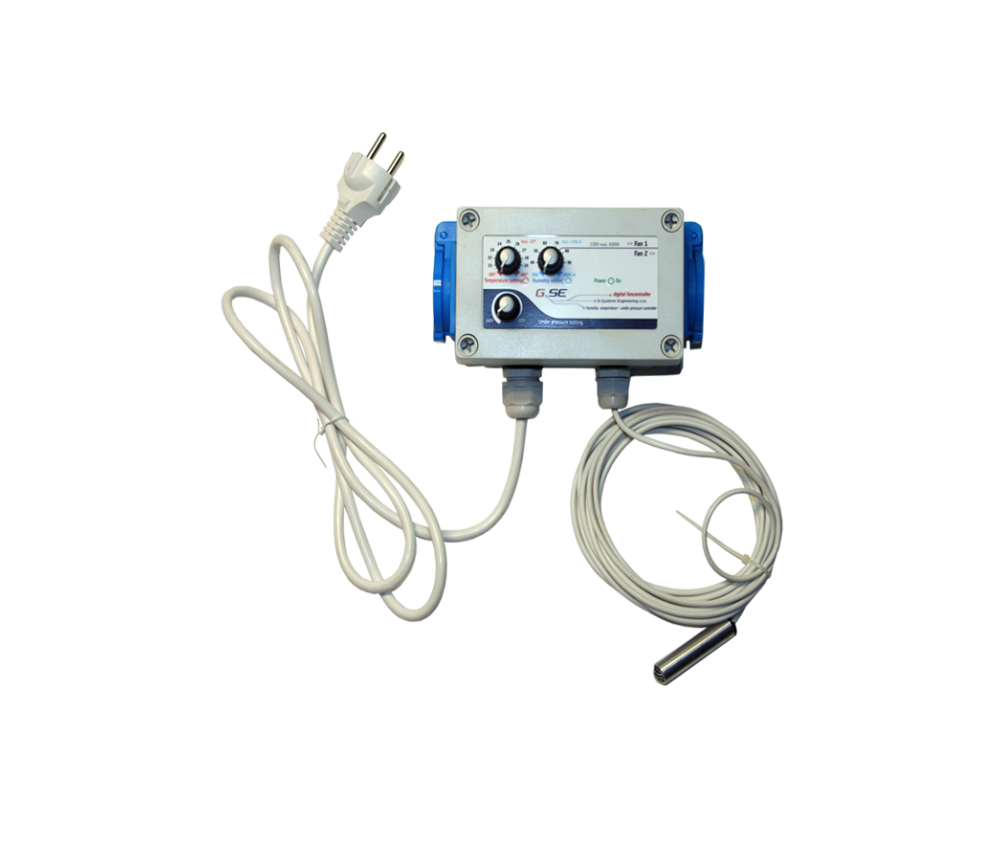

The G-Systems Temperature and Negative Pressure Controller is a device designed to regulate crucial factors in indoor cultivation, such as temperature and air inflow and outflow. While the extraction controller maintains a constant ambient temperature, negative pressure prevents the scented interior air from uncontrollably leaking out.
Easy to control and handle, it features a safety system that will keep the intake fan active in the event of system overheating, thus protecting the crop.
- Control of temperature, minimum speed and pressure, using knobs.
- Three potentiometers.
- Connection for two extractors or fans.
- Ready to use.
- Water-resistant sealed cover.
- Plug covers.
- Low voltage sensor.
- 1.5m power cable and 4m sensor cable, up to 10m if necessary.
Technical information and specifications:
- Box: WxHxD = 130x80x70mm
- Controller: WxHxD = 160x100x90mm
- Designed for: 2x600W / TRIAC 2x16A
- Voltage: 230V / 50HZ
- Digital Sensor: 5V measures temperatures from -55°C to +125°C (-67°F to +257°F) with an accuracy of 0.5ºC from -10ºC to +85ºC
- Humidity accuracy ±4.5% relative humidity
- Type of protection: IP44
Configuration range:
- Temperature: 20ºC to -30ºC
- Minimum speed: off, 20% to 100%
- Negative pressure: 100% to -50%
La Huerta's Opinion
The Temperature and Negative Pressure Controller is a ventilation system that embodies the latest advancements in programming.
It may be advisable for indoor cultivators with rooms ranging from small to large. More indoor cultivation solutions right here, at La Huerta Grow Shop.
